Hedge Trimmers

Quick Answer

Starting your petrol hedge trimmer depends on whether the engine is cold or warm. For a cold engine, use the choke and primer bulb before pulling the starter cord. For a warm engine, leave the choke in the Run position and pull the starter cord until the engine starts.

⚠️ Safety Notice

Before starting your hedge trimmer:

• Read and understand the user manual.
• Check that the cutting blades are clear of any obstructions.
• Ensure all guards are correctly fitted.
• Start the hedge trimmer on a flat, stable surface.
• Keep bystanders and pets at a safe distance.
• Never start the machine indoors or in an enclosed area, as exhaust gases contain carbon monoxide.

Cold Start Procedure

Use this procedure when starting the hedge trimmer for the first time of the day or after it has been left unused for an extended period.

Step 1: Set the Start/Stop Switch

Move the Start/Stop switch to the START position.

Step 2: Apply Full Choke

Move the choke lever to the Full Choke position (diagonal line symbol).

This reduces airflow and enriches the fuel mixture, making a cold engine easier to start.

Step 3: Prime the Fuel System

Press the primer bulb approximately 7 times, or until fuel can be seen flowing through the bulb.

Step 4: Position the Machine Safely

Place the hedge trimmer on a flat, stable surface.

Hold the front handle firmly with your left hand.

Step 5: Pull the Starter Cord

Using your right hand, pull the starter cord sharply until the engine attempts to start.

Step 6: Move the Choke to the Run Position

As soon as the engine attempts to fire, move the choke lever to the Run position (vertical line symbol).

Step 7: Start the Engine

Pull the starter cord again until the engine starts and runs.

Step 8: Allow the Engine to Warm Up

Allow the engine to idle for 15–30 seconds before operating the hedge trimmer.

Warm Start Procedure

Use this procedure when restarting the hedge trimmer shortly after it has been switched off.

Step 1: Set the Start/Stop Switch

Move the Start/Stop switch to the START position.

Step 2: Set the Choke to Run

Ensure the choke lever is in the Run position (vertical line symbol).

Step 3: Start the Engine

Pull the starter cord until the engine starts and runs normally.

Control Guide

Safety Information

Do not operate the hedge trimmer with the choke left in the Full Choke position once the engine is running.

Always move the choke to the Run position after the engine attempts to start. Leaving the choke on can flood the engine, reduce performance, and make restarting more difficult.

Frequently Asked Questions

Why won't my petrol hedge trimmer start?

Check that the start/stop switch is in the START position, the fuel tank contains the correct fuel mixture, the engine has been primed, and the correct starting procedure has been followed.

How many times should I press the primer bulb?

Press the primer bulb approximately 7 times, or until you can see fuel flowing through it.

Should I use the choke every time I start the hedge trimmer?

No. Use the choke only when starting a cold engine. For a warm restart, leave the choke in the Run position.

What happens if I leave the choke on?

Leaving the choke in the Full Choke position after the engine starts can flood the engine, causing poor performance or preventing it from restarting.

How long should I let the engine warm up?

Allow the engine to idle for 15–30 seconds before beginning work.

Quick Answer

If your petrol hedge trimmer is difficult to start, runs unevenly, or will not start at all, checking the spark plug is a good place to begin. A dirty, damaged, or faulty spark plug can prevent the engine from igniting the fuel mixture correctly, resulting in poor performance or failure to start.

⚠️ Safety Notice

Before carrying out any maintenance:

• Switch off the hedge trimmer and allow the engine to cool completely.
• Remove the spark plug cap to prevent accidental starting.
• Work in a well-ventilated area away from open flames or sources of ignition.
• Wear suitable protective gloves and eye protection.

Tools Required

You will need:

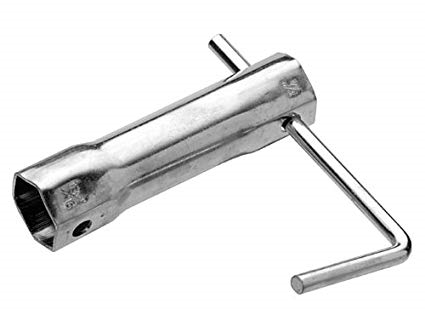

• Spark plug spanner or wrench

• Wire brush (recommended)
• Clean cloth
• Petrol (for cleaning, if required)

Step 1: Remove the Spark Plug

1. Remove the spark plug cap (high-tension lead) from the spark plug.
2. Using a spark plug spanner, turn the spark plug anti-clockwise until it can be removed.

Note: The spark plug may be tight and require some force to loosen.

Step 2: Inspect the Spark Plug

Examine the spark plug for:

• Carbon build-up
• Dirt or oil deposits
• Worn or damaged electrodes
• Cracks in the ceramic insulator

A dirty or damaged spark plug may not produce a strong enough spark for the engine to start or run correctly.

Cleaning the Spark Plug

If the spark plug is dirty:

• Clean the electrode and threads using a wire brush.
• Alternatively, wipe the spark plug with a clean cloth lightly dampened with petrol.
• Allow the spark plug to dry completely before testing or reinstalling.

If the spark plug is excessively worn or damaged, replace it with a new one of the correct specification.

Step 3: Test for a Spark

1. Reconnect the spark plug to the spark plug cap.
2. Hold the threaded section of the spark plug firmly against a clean, unpainted metal part of the hedge trimmer to create an earth connection.
3. Ensure the Start/Stop switch is in the START position.
4. Move to a shaded area where the spark is easier to see.
5. Pull the starter cord while observing the tip of the spark plug.

Results

• A white or blue spark indicates the spark plug is working correctly.
• No visible spark may indicate a faulty spark plug or an ignition system fault.

Important: Hold the spark plug using insulated pliers or another insulated tool. Keep your hands away from the electrode during testing to avoid electric shock.

Step 4: Test with a Different Spark Plug

If you have access to a known working spark plug:

1. Connect it to your hedge trimmer's spark plug cap.
2. Repeat the spark test.

Results

• If the replacement spark plug produces a spark, your original spark plug should be replaced.
• If neither spark plug produces a spark, the fault may be with the ignition coil or another part of the ignition system.

Step 5: Reinstall the Spark Plug

1. Carefully screw the spark plug into the engine by hand to avoid cross-threading.
2. Tighten it securely using the spark plug spanner.
3. Push the spark plug cap firmly back into place.

If the Problem Persists

If your hedge trimmer still does not start or continues to run poorly after checking the spark plug:

• Check the fuel mixture is fresh and correctly mixed.
• Inspect the air filter and clean or replace it if necessary.
• Ensure the fuel filter is not blocked.
• If there is still no spark, the ignition coil or another ignition component may require inspection or replacement.

If you require further assistance, please contact our Technical Support Team.

Frequently Asked Questions

Why is my petrol hedge trimmer difficult to start?

Common causes include a dirty or faulty spark plug, stale fuel, a blocked air filter, or an ignition system fault.

What colour should the spark be?

A healthy spark is typically white or blue. A weak or absent spark indicates a fault.

Can I clean a spark plug instead of replacing it?

Yes. Light carbon deposits can often be removed with a wire brush. However, if the spark plug is worn, cracked, or damaged, it should be replaced.

What if there is no spark with a new spark plug?

If a known working spark plug also fails to produce a spark, the ignition coil or another ignition component may be faulty.

How often should I replace the spark plug?

Inspect the spark plug regularly and replace it if it shows signs of wear, damage, or poor performance, or according to the maintenance schedule in your user manual.

Quick Answer

If your petrol hedge trimmer is revving too fast while idling, the most common causes are the choke not being fully disengaged, the throttle hold (fast-idle) function remaining engaged, or a sticking throttle cable. Follow the checks below to help identify the cause.

⚠️ Safety Notice

Before carrying out any checks:

• Switch off the hedge trimmer and allow the engine to cool if necessary.
• Keep hands, clothing, and loose objects away from the cutting blades.
• Place the hedge trimmer on a flat, stable surface.

Do not use the hedge trimmer if the engine continues to race or the blades move unexpectedly at idle.

Check the Choke Position

After the engine has started, ensure the choke lever has been moved fully to the Run position.

If the choke remains partially or fully engaged:

• The engine may run unevenly.
• Engine speed may increase unexpectedly.
• The engine may produce excessive exhaust smoke or run poorly.

Move the choke fully to the Run position and allow the engine to stabilise.

Reset the Throttle Hold

Some petrol hedge trimmers have a throttle hold or fast-idle function to assist with starting.

To disengage it:

1. Hold the hedge trimmer securely.
2. Press and release the throttle trigger.
3. Check whether the engine returns to its normal idle speed.

If the engine speed returns to normal, the throttle hold has been successfully released.

Inspect the Throttle Cable

A sticking or damaged throttle cable can prevent the throttle from returning to the idle position.

Visually inspect the cable for:

• Kinks or bends
• Signs of wear or damage
• Obstructions preventing free movement

If the throttle trigger does not move freely or fails to return to its resting position, discontinue use of the hedge trimmer.

Important: Accessing or adjusting the throttle cable usually requires partial disassembly of the machine. This should not be attempted, as it may invalidate your warranty.

If the Problem Persists

If the engine continues to rev too fast after completing the checks above:

• Stop using the hedge trimmer immediately.
• Do not attempt to adjust the carburettor unless instructed by the manufacturer.
• Contact our Technical Support Team for further assistance.

Further inspection may be required to identify a fault with the throttle mechanism, carburettor, or engine.

Frequently Asked Questions

Why is my petrol hedge trimmer revving too fast?

The most common causes are the choke remaining engaged, the throttle hold still being activated, or a sticking throttle cable.

How do I release the throttle hold?

Press and release the throttle trigger after the engine has started. This should return the engine to its normal idle speed.

Is it safe to use the hedge trimmer if it is revving too fast?

No. If the engine is racing or the blades continue moving unexpectedly at idle, stop using the machine until the fault has been resolved.

Can I adjust the throttle cable myself?

No. Accessing or adjusting the throttle cable generally requires disassembly of the hedge trimmer and may invalidate your warranty.

What should I do if the engine speed does not return to normal?

Stop using the hedge trimmer and contact our Technical Support Team for further advice.

Quick Answer

If your petrol hedge trimmer starts but stalls when the throttle trigger is released, the most common causes are stale fuel, a blocked air filter, or incorrect carburettor settings. Before adjusting the carburettor, carry out the basic checks below to rule out common issues.

⚠️ Safety Notice

Before carrying out any maintenance or adjustments:

• Work in a well-ventilated area.
• Keep hands and loose clothing away from the cutting blades.
• Wear suitable protective equipment.
• Ensure the hedge trimmer is placed on a stable surface.
• Be aware that incorrect carburettor adjustment can affect engine performance and may cause engine damage.

Why Won't My Hedge Trimmer Idle?

If the engine starts but cuts out when the throttle is released, possible causes include:

• Old or incorrectly mixed fuel
• A blocked or dirty air filter
• Restricted fuel flow
• Incorrect carburettor settings
• General engine wear or maintenance issues

Begin with the simple checks below before considering carburettor adjustment.

Preliminary Checks

Check the Fuel

Ensure the fuel is:

• Fresh
• Correctly mixed according to the manufacturer's recommendations
• Free from contamination

Old or incorrectly mixed fuel can cause poor combustion and unstable idling.

Check the Air Filter

Inspect the air filter and ensure it is clean.

A dirty or blocked air filter can restrict airflow and affect the fuel-to-air mixture, causing the engine to stall at idle.

Replace or clean the air filter if necessary.

Check the Fuel Cap

Ensure the fuel cap is fitted correctly and tightened by hand.

The cap should be secure but not overtightened.

A poorly fitted fuel cap can sometimes affect fuel delivery and engine performance.

Carburettor Adjustment – Low-Speed (L) Screw

If the preliminary checks have been completed and the hedge trimmer still will not idle, the carburettor settings may require adjustment.

Important

⚠️ Carburettor adjustment requires mechanical knowledge and the correct tools.

Incorrect adjustment can:

• Cause poor engine performance
• Prevent the engine from starting
• Lead to engine damage

If you are unsure, contact our Technical Support Team before proceeding.

Tools Required

• Carburettor adjustment tool (Pacman type)

Step 1: Warm Up the Engine

Start the hedge trimmer and allow it to reach normal operating temperature.

Adjustments should always be carried out on a warm engine.

Step 2: Locate the Adjustment Screws

The carburettor has two adjustment screws:

Step 3: Adjust the Low-Speed (L) Screw

Carefully adjust the L screw until:

• The engine idles smoothly.
• The engine no longer stalls when the throttle is released.
• The cutting blades remain stationary at idle.

Make small adjustments and allow the engine time to respond.

Step 4: Adjust the High-Speed (H) Screw

With the throttle fully open:

1. Turn the H screw anti-clockwise until the engine begins to lose maximum RPM.
2. Slowly turn the screw clockwise until the engine reaches full RPM and runs smoothly.

Avoid over-adjusting the high-speed setting.

Step 5: Check Idle Operation

Release the throttle trigger and confirm that:

• The engine returns to a steady idle.
• The engine does not stall.
• The cutting blades remain stationary.

If necessary, make further minor adjustments to achieve a stable idle.

Unable to Perform This Procedure?

If you are not confident carrying out carburettor adjustments, we recommend that you do not proceed.

Attempting to dismantle or adjust components incorrectly may invalidate your warranty and could result in further damage.

Please contact our Technical Support Team for assistance.

Frequently Asked Questions

Why does my hedge trimmer stall when I release the throttle?

This is commonly caused by incorrect carburettor settings, stale fuel, a blocked air filter, or restricted fuel flow.

Should the blades move while the engine is idling?

No. The blades should remain stationary when the engine is idling correctly.

Can old fuel cause idling problems?

Yes. Fuel can deteriorate over time and affect engine performance, making the hedge trimmer difficult to idle or start.

What does the L screw do?

The L (Low Speed) screw controls the fuel mixture at idle and low engine speeds.

Can I adjust the carburettor myself?

Only if you have the correct tools and experience. Incorrect adjustments can worsen performance or damage the engine.

Quick Answer

If your petrol hedge trimmer starts and idles normally but will not accelerate, lacks power, or stalls when the throttle is applied, the cause is often stale fuel, a blocked air filter, restricted fuel flow, or incorrect carburettor settings. Follow the checks below before attempting any carburettor adjustments.

⚠️ Safety Notice

Before carrying out any maintenance or adjustments:

• Work in a well-ventilated area.
• Wear suitable protective equipment.
• Keep hands, clothing, and loose objects away from the cutting blades.
• Ensure the hedge trimmer is placed on a stable surface.

Carburettor adjustment should only be carried out by someone with the appropriate mechanical knowledge and the correct adjustment tool.

Why Won't My Hedge Trimmer Rev Up?

If the engine starts and idles correctly but struggles to accelerate or reach full speed, possible causes include:

• Old or incorrectly mixed fuel
• A blocked or dirty air filter
• Restricted fuel flow
• Incorrect carburettor adjustment
• A partially blocked fuel filter or carburettor

Carry out the following checks before adjusting the carburettor.

Preliminary Checks

Check the Fuel

Ensure the fuel is:

• Fresh
• Mixed to the correct ratio specified by the manufacturer
• Free from contamination

Old or incorrectly mixed fuel can reduce engine performance and prevent the engine from reaching full RPM.

Check the Air Filter

Inspect the air filter for dirt and debris.

A blocked air filter restricts airflow and can cause:

• Poor acceleration
• Reduced engine power
• Excessive exhaust smoke

Clean or replace the air filter if necessary.

Check the Fuel Cap

Ensure the fuel cap is correctly fitted and tightened by hand.

A loose or faulty fuel cap can affect fuel delivery and engine performance.

Carburettor Adjustment – High-Speed (H) Screw

If the preliminary checks have been completed and the hedge trimmer still will not rev up, the carburettor may require adjustment.

Important

⚠️ Incorrect carburettor adjustment can:

• Reduce engine performance
• Cause engine damage
• Increase exhaust emissions
• Invalidate your warranty

Tools Required

• Carburettor adjustment tool (Pacman type)

Step 1: Warm Up the Engine

Start the hedge trimmer and allow it to reach normal operating temperature.

Carburettor adjustments should always be made with a warm engine.

Step 2: Locate the Adjustment Screws

The carburettor contains the following adjustment screws:

Step 3: Check the Low-Speed Setting

Before adjusting the high-speed circuit, ensure:

• The engine idles smoothly.
• The engine does not stall.
• The cutting blades remain stationary at idle.

An incorrectly adjusted L screw can affect acceleration.

Step 4: Adjust the High-Speed (H) Screw

With the throttle fully open:

1. Turn the H screw anti-clockwise until the engine begins to lose maximum RPM.
2. Slowly turn the screw clockwise until the engine runs smoothly and reaches maximum RPM.
3. Test the throttle response.

The engine should accelerate cleanly without hesitation or stalling.

Avoid over-adjusting the H screw, as excessive engine speed can damage the engine.

If the Problem Persists

If the hedge trimmer still struggles to rev after completing these checks:

• Inspect the fuel filter for blockages.
• Check the spark plug for wear or carbon deposits.
• Ensure the exhaust spark arrestor (if fitted) is not blocked.
• Contact our Technical Support Team for further diagnosis.

Frequently Asked Questions

Why does my hedge trimmer idle but not rev up?

This is commonly caused by stale fuel, a blocked air filter, restricted fuel flow, or incorrect carburettor settings.

What does the H screw adjust?

The H (High Speed) screw controls the fuel mixture at high engine speeds and affects maximum RPM and acceleration.

Should I adjust the H screw before the L screw?

No. Always ensure the engine idles correctly before making any adjustments to the high-speed setting.

Can dirty fuel affect engine performance?

Yes. Old or contaminated fuel can restrict performance and prevent the engine from accelerating properly.

Can I adjust the carburettor myself?

Only if you have the correct adjustment tool and experience. Incorrect adjustments can damage the engine and may invalidate your warranty.

Quick Answer

If the pull cord on your petrol hedge trimmer has snapped, become frayed, or no longer retracts correctly, do not continue attempting to start the machine. The starter assembly contains a tension-loaded recoil spring, and repairing or replacing it requires mechanical knowledge and specialist tools.

⚠️ Safety Notice

Before inspecting the hedge trimmer:

• Switch off the engine and allow it to cool completely.
• Remove the spark plug cap to prevent accidental starting.
• Do not pull on a damaged or partially broken starter cord.
• Do not dismantle the starter assembly unless you are suitably qualified to do so.

The recoil spring inside the starter assembly is under tension and can cause injury if released unexpectedly.

Common Symptoms

You may need to replace the starter assembly if:

• The pull cord has snapped.
• The pull cord is frayed or badly worn.
• The pull cord does not retract after being pulled.
• The starter handle pulls out but does not engage the engine.
• The starter mechanism feels loose or jammed.

What Should I Do?

If your pull cord is damaged:

• Stop using the hedge trimmer.
• Do not continue pulling the starter cord, as this may cause further damage.
• Inspect the starter housing for any visible damage if it is safe to do so.

Please contact our Customer Support Team for assistance.

When contacting us, please provide:

• Your hedge trimmer model number.
• Proof of purchase (if available).
• A brief description of the fault.
• Photographs of the damaged pull cord or starter assembly, where possible.

Our team will advise whether a replacement starter assembly is available or whether the machine should be inspected by our workshop technicians.

Important Information

The starter assembly contains a recoil spring under tension.

Repairs normally require partial disassembly of the hedge trimmer and should only be carried out by someone with the appropriate mechanical knowledge and tools.

Unauthorised repairs or modifications may invalidate your warranty and could result in further damage to the machine.

Frequently Asked Questions

Why has my pull cord snapped?

Pull cords can wear over time through repeated use. Excessive resistance caused by an engine fault or a damaged starter mechanism can also cause the cord to break.

Can I replace just the pull cord?

This depends on the model. In many cases, replacing the complete starter assembly is the recommended repair, as it also includes the recoil spring and starter mechanism.

Is it safe to keep using the hedge trimmer?

No. If the pull cord is damaged or the starter assembly is faulty, do not continue attempting to start the machine.

Can I repair the recoil spring myself?

We do not recommend this. The recoil spring is under tension and can cause injury if handled incorrectly.

What information should I provide when contacting support?

To help us assist you quickly, please provide your model number, proof of purchase (where available), a description of the fault, and photographs of the damaged starter assembly if possible.

Quick Answer

If the engine is running but the blades are not moving, the most common causes are debris trapped between the blades, inadequate lubrication, damaged blade teeth, or a fault within the gearbox or drive mechanism. Follow the checks below before contacting Technical Support.

⚠️ Safety Notice

Before carrying out any inspection:

• Switch off the hedge trimmer and allow the engine to cool completely.
• Remove the spark plug cap to prevent accidental starting.
• Wait until all moving parts have come to a complete stop.
• Always wear protective gloves when handling the cutting blades.

The blades are extremely sharp, even when the engine is not running.

Why Won't the Blades Move?

If the engine runs but the blades remain stationary, possible causes include:

• Debris trapped between the blades
• Poor blade lubrication
• Damaged or bent blade teeth
• Worn or damaged gearbox components
• A failed drive gear

Begin with the simple checks below before considering a mechanical repair.

Check Blade Lubrication

Regular lubrication helps the blades move freely and reduces wear on the gearbox.

Ensure the blades are lubricated using a suitable hedge trimmer blade lubricant or multi-purpose grease.

Poor lubrication can result in:

• Increased friction
• Reduced cutting performance
• Excessive strain on the drive mechanism
• Premature component wear

Check the Cutting Capacity

Attempting to cut material that exceeds the hedge trimmer's capacity can overload the drive system.

For the following models:

• QHTP26 – Maximum cutting diameter: 22 mm
• SLK26B – Maximum cutting diameter: 22 mm

For all other models, refer to your user manual for the recommended maximum branch diameter.

Check for Obstructions

Inspect the blades for anything preventing them from moving freely.

Look for:

• Twigs or branches trapped between the blade teeth
• Built-up sap or resin
• Dirt or other debris

Carefully remove any obstructions before restarting the hedge trimmer.

Inspect the Blade Teeth

Examine both blades for signs of damage, including:

• Bent teeth
• Broken teeth
• Excessive wear
• Misaligned blades

Damaged blades can prevent normal operation and should be replaced before further use.

Check the Gear Drive System

If the blades still do not move after completing the checks above, the fault may be within the gearbox.

Possible causes include:

• Worn drive gears
• Damaged gearbox components
• A failed drive gear (sometimes referred to as the bull gear)

These components transfer power from the engine to the cutting blades.

Important: Inspecting or repairing the gearbox requires partial disassembly of the hedge trimmer and should only be carried out by a suitably qualified person. Attempting this repair yourself may invalidate your warranty.

If the Problem Persists

If the engine runs normally but the blades still do not move:

• Do not continue operating the hedge trimmer.
• Do not dismantle the gearbox unless instructed by Technical Support.
• Contact our Technical Support Team for further assistance.

Our team can help diagnose the fault and advise whether replacement parts or a repair are required.

Frequently Asked Questions

Why is my hedge trimmer engine running but the blades are not moving?

The blades may be jammed by debris, damaged, poorly lubricated, or the gearbox may have developed a fault.

Can debris stop the blades from moving?

Yes. Small branches, sap, and other debris can become trapped between the blade teeth and prevent the blades from operating correctly.

How often should I lubricate the blades?

Lubricate the blades before and after use, and during extended periods of cutting to reduce friction and wear.

What is the drive gear (bull gear)?

The drive gear transfers power from the engine to the cutting blades. If it becomes worn or damaged, the engine may continue to run while the blades remain stationary.

Can I repair the gearbox myself?

No. Gearbox repairs require partial disassembly of the hedge trimmer and should only be carried out by a suitably qualified person, as unauthorised repairs may invalidate your warranty.

Quick Answer

If the fuel lines on your petrol hedge trimmer have become cracked, damaged, or detached, they should be replaced to restore a reliable fuel supply to the engine. When fitting new fuel lines, ensure they are routed correctly and connected securely to prevent fuel leaks and starting problems.

⚠️ Safety Notice

Before carrying out any maintenance:

• Switch off the hedge trimmer and allow the engine to cool completely.
• Remove the spark plug cap to prevent accidental starting.
• Empty the fuel tank before removing the fuel lines.
• Work in a well-ventilated area away from open flames, sparks, or other ignition sources.
• Wear suitable protective gloves and eye protection.

Before You Begin

You will require:

• Outlet hose (longer fuel hose)
• Inlet hose (shorter fuel hose)
• Replacement fuel filter (recommended if the existing filter is worn)

Tip: Place the replacement fuel hoses in hot (not boiling) water for a few minutes before installation. This softens the hoses, making them easier to feed through the fuel tank openings.

Understanding the Fuel Line Layout

Your hedge trimmer uses two fuel lines:

Correct routing is essential for the fuel system to operate properly.

Replacing the Outlet Hose (Longer Hose)

1. Feed the longer hose through the opening in the fuel tank.
2. Pull enough hose through the opening to attach the fuel filter.
3. Secure the fuel filter to the end of the hose inside the tank.
4. Position the filter so it can move freely and reach the fuel as the hedge trimmer is operated.
5. Connect the external end of the hose to the carburettor fuel inlet.

Replacing the Inlet Hose (Shorter Hose)

1. Feed the shorter hose into position.
2. Connect one end to the primer bulb.
3. Connect the opposite end to the correct carburettor connection.

This hose allows fuel to circulate through the fuel system each time the primer bulb is pressed.

Final Checks

Before starting the hedge trimmer:

• Ensure all fuel line connections are fully seated.
• Check that the fuel filter is securely attached inside the fuel tank.
• Inspect both fuel lines for kinks, twists, or trapped sections.
• Press the primer bulb several times and confirm that fuel flows through the system.
• Check carefully for any signs of fuel leakage.

If the Problem Persists

If the hedge trimmer still does not start or runs poorly after replacing the fuel lines:

• Check the fuel lines are connected to the correct carburettor ports.
• Ensure the fuel filter is not blocked.
• Verify the primer bulb is operating correctly.
• Confirm fresh fuel mixed to the manufacturer's recommended ratio is being used.

If you are unable to resolve the issue, please contact our Technical Support Team for further assistance.

Frequently Asked Questions

Why do fuel lines need replacing?

Fuel lines can harden, crack, or split over time due to age, vibration, and exposure to fuel, resulting in leaks or poor engine performance.

Which fuel line is longer?

The outlet hose is the longer hose. It carries fuel from the tank, through the fuel filter, to the carburettor.

Why should I place the fuel hoses in hot water?

Warm water softens the fuel hoses, making them more flexible and easier to install through the fuel tank openings.

Why isn't the primer bulb filling with fuel?

This usually indicates that the fuel lines are connected incorrectly, the fuel filter is blocked, or there is an air leak in the fuel system.

Can I reuse the old fuel filter?

If the fuel filter is dirty, damaged, or showing signs of wear, it should be replaced when fitting new fuel lines to ensure reliable fuel flow.

Quick Answer

Preparing your petrol hedge trimmer for winter storage helps prevent fuel deterioration, carburettor blockages, and starting problems. Before storing the machine, empty the fuel tank, run the engine until it stops, clear any remaining fuel from the system, and store the hedge trimmer in a clean, dry location.

Note: The accompanying video demonstrates this procedure using a CDB30 grass trimmer. However, the same principles apply to most 2-stroke petrol-powered garden machines, including petrol hedge trimmers.

⚠️ Safety Notice

Before carrying out any maintenance:

• Switch off the hedge trimmer and allow the engine to cool completely.
• Work in a well-ventilated area away from open flames, sparks, or other sources of ignition.
• Wear suitable protective gloves when handling the cutting blades.
• Ensure the blade cover is fitted before storing the machine.

Why Prepare Your Hedge Trimmer for Winter?

Fuel left in the machine during long periods of storage can deteriorate and leave deposits in the fuel system. This can lead to:

• Starting difficulties
• Poor engine performance
• Blocked carburettors
• Additional maintenance before the next season

Preparing your hedge trimmer correctly before storage will help keep it in good working condition and make it easier to start when required again.

Winter Storage Procedure

Step 1: Empty the Fuel Tank

Drain any remaining fuel from the fuel tank into a suitable container.

Removing old fuel helps prevent residue and varnish from forming inside the fuel system during storage.

Step 2: Empty the Carburettor

Start the hedge trimmer and allow it to run until it stops naturally.

This uses the remaining fuel in the carburettor and fuel lines.

Step 3: Clear the Fuel System

Press the primer bulb several times to circulate any remaining fuel through the fuel system.

Attempt to restart the engine.

If the engine does not start, the fuel system has been successfully emptied and the hedge trimmer is ready for storage.

Step 4: Store the Hedge Trimmer

Store the machine in a:

• Clean, dry location
• Well-ventilated area
• Place protected from moisture and direct sunlight

Where possible:

• Store the hedge trimmer off the ground.
• Keep it in a shed, garage, or other dry environment.
• Protect it from excessive dust and damp conditions.
• Fit the blade cover before storage.

Additional Maintenance Before Storage

For the best protection during storage, we also recommend:

• Cleaning the cutting blades thoroughly.
• Applying a suitable blade lubricant or protective oil.
• Inspecting the machine for signs of wear, damage, or loose fixings.
• Cleaning or replacing the air filter if required.
• Wiping down the exterior to remove dirt, sap, and moisture.

Before Using the Hedge Trimmer Again

Before using the machine after winter storage:

1. Fill the fuel tank with fresh fuel mixed to the manufacturer's recommended ratio.
2. Inspect the fuel lines and primer bulb for signs of cracking or deterioration.
3. Check the cutting blades for damage and lubricate them if necessary.
4. Ensure all controls operate correctly.
5. Start the hedge trimmer following the normal starting procedure.

Frequently Asked Questions

Why should I drain the fuel before winter?

Fuel can deteriorate during storage, leaving deposits that may block the carburettor and make the engine difficult to start.

Should I leave fuel in the carburettor?

No. Running the engine until it stops helps remove fuel from the carburettor and reduces the risk of fuel-related problems during storage.

Where should I store my hedge trimmer?

Store it in a clean, dry, and well-ventilated location away from moisture, direct sunlight, and sources of ignition.

Should I lubricate the blades before storage?

Yes. Applying a suitable blade lubricant or protective oil helps prevent corrosion and keeps the blades in good condition.

What should I check before using the hedge trimmer again?

Inspect the fuel system, refill with fresh fuel, lubricate the blades, and ensure all controls and safety features are operating correctly before use.
